Full - Automatic Stator Coil Forming Machine Hydraulic System Driven

Place of Origin : China

Brand Name : Nide

Certification : ce

Model Number : Z3XJ1-300-250T

MOQ : 1 set

Price : Negotiable

Packaging Details : Wooden case suitable for sea transportation

Delivery Time : 35 working days

Payment Terms : T/T, L/C

Supply Ability : 100set/year

Production Name : Stator Coil Forming Machine

Function : shape the coils

Working station : Single working station

HS code : 8479819000

Machine size : Middle size

Condition : New

Certificate : CE

Contact Now


Full - Automatic Stator Coil Forming Machine Hydraulic System Driven


Quick Detail:


1. This coil forming machine is used for stator coil final forming,
2.The forming process is done by machine automatically
3. it is driven by the hydraulic system
4. It is controlled by the PLC.
5. This forming machine is of highly efficiency and qualified forming.


Technical parameter:

Stator I.D

50~100mm

Stator O.D

≤160mm

Stack height

16~100mm

Displacement of cylinder

20F

Power supply

380V/50/60Hz 1.5KW

Weight

700Kg

Dimension

650*900*2300mm


Description:

Stator Coil Final Forming Machine is used for stator coil final forming, it is driven by the hydraulic system, controlled by the PLC. Its tooling design adopts flexible principles of inner expansion. The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing. It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.


Required information for quotation: stator drawing before forming and after forming, including stator O.D, stator I.D, stator stack height, and end coil dimension.

Competitive advantages:

It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.


Regular maintenance

Regularly check if there is water in the filter. If yes, discharge the water.

Regularly check if there is sufficient oil in the atomized lubricator. If not, replenish it.

Regularly check the lubricating condition of guide mechanism, replenish if necessary.

Check and clean up the electrical cabinet once every three months.

Check solenoid valve screws and pipe connectors once every 3 months.

Check filter once every 2 months.

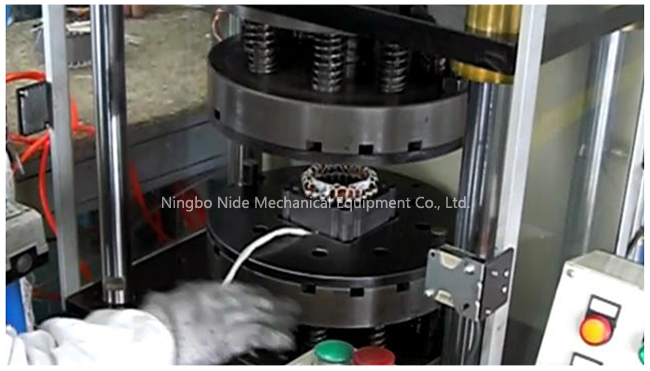

Stator coil forming machine forming process

final forming machine
