AC servo motor Stator Winding Inserting Machine , Coil Winding Machinery
Quick Detail:
1.This machine could dong coil winding and coil inserting automatically.
2.This machine is used for induction motor stator.
3. PLC and touch screen control.
4. Simple operation, low noise, fast speed and high automaticity.
Description:
This machine is can do coil winding, coil inserting and wedge inserting simultaneously. It has four working stations. Two of them do the coil winding process. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.The other two will do coil inserting and wedge inserting process.
This machine can detect the wire coating damage. The inserting station is controlled by servo motor. The parameter can be set in the touch screen. With serval station working simultaneously, this machine is efficiency and saves labor cost.
Specifications :
| Max stator O.D | ≤φ150mm |
| Stator I.D | ≤φ110mm |
| Stator stack length | 30-120mm |
| Slot number range | 8~48 slots |
| Appropriate Wire | 0.18-φ1.2mm |
| Height of Coil | 3 |
| Appropriate wire | Copper wire/Aluminum wire |
| Winding inserting mode | chained/same core |
| Pitch time | ≤40s/pc |
| Voltage | 380V50/60Hz |
| Power | 15Kw |
| Air source | 0.6-0.8MPa |
| Machine productivity | 400pcs/ 8 hours |
| Machine Dimension | 2000×(W)1300×(H)2300mm |
| Weight | ≈4000Kg |
Applications:
This simultaneous stator coil winding and coil inserting machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.
Machine running video links
https://www.youtube.com/watch?v=RPJ7FrmjZ8o
Competitive advantages:
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

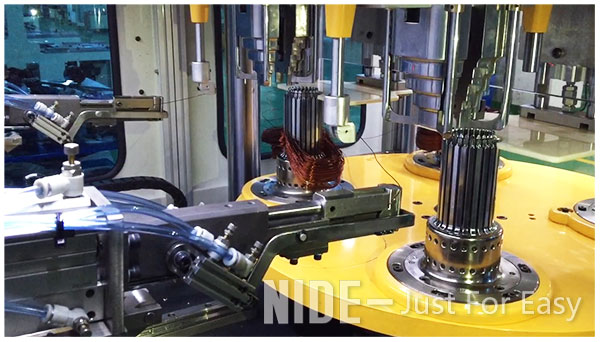

The working station of this Automatic Simultaneous Stator Coil Winding and Coil Inserting Machine
