Vertical BLDC Motor Stator Paper Inserting Machine

Name: Vertical BLDC Motor Stator Paper Inserting Machine
Brand: NIDE
Price: 1 USD

Quality Vertical BLDC Motor Stator Paper Inserting Machine for sale

Brand Name : NIDE

Model Number : ND-SSI01D

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 set per month

Delivery Time : 35 working days

Packaging Details : Wooden case suitable for sea transportation

Product Name : BLDC motor stator paper insertion mahcine

Function : inserting insulation paper into stator slot

Condition : New

Customized service : available

Application : electric motor inner stator paper inserting machine

Type : Automatic

after-sales service : oversea service

Control : HMI

Contact Now

automatic vertical motor stator paper inserting machine for brushless dc motor making

(1) Machine function and characteristic:

This stator slot paper inserting machine is designed for electric motor inner stator insulation paper insertion,and suitable for servo motor, brushless DC motor and stepping motor stator. This paper insertion machine is easy to operate, Low noise and Highly automated. It adopts mechanical driven system, servo system and pneumatic system. As a result, the machine can automatically do positioning, pressing, paper feeding, paper forming, paper pushing. The paper edge can be auto chamfered so as to solve the winding problem caused by paper, and improve the percent of pass of stator.

(2) Technical parameter:

Product name:	Automatic motor inner stator slot paper inserting machine
Stack height:	20mm ~ 60mm
Stator I.D:	50~ 150mm(can be customized if special)
Insulation paper width:	10mm ~ 55mm(can becustomized if special)
Insulation paper thickness:	0.188mm ~ 0.3mm
Slot No.:	Odd(more than 8 slots)
Cycle time:	11pcs/pc
Notching dimension:	0-3x45
Air pressure:	0.4~0.8MPa
Power supply:	220V AC 50/60Hz
Power:	7KW
Weight:	600Kg
Dimension:	1600mm X 700mmX 1780mm

(3) Application:

The stator paper inserting mahcine is suitable for servo motor, BLDC motor and stepping motor stator, is used for motor stator insulation protection.

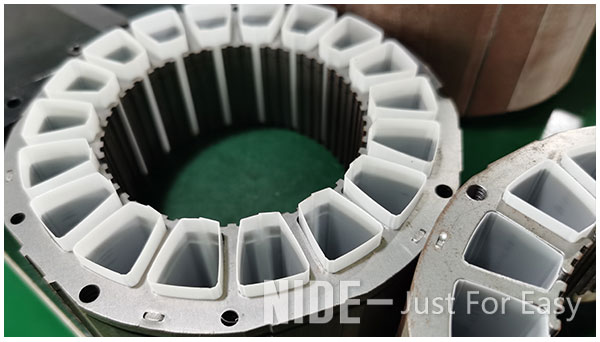

(4) Picture show:

Vertical BLDC Motor Stator Paper Inserting Machine

The auto Bldc stator paper insertion machine video
